Is the Power Adapter a Charger?
As a rule, power adapters and chargers are not exactly the same thing. The previous is a power switch, which is utilized to give energy; the last option is utilized to charge the battery, which will utilized for charge in stages as per the battery limit and charging qualities.
The central matters are as per the following:

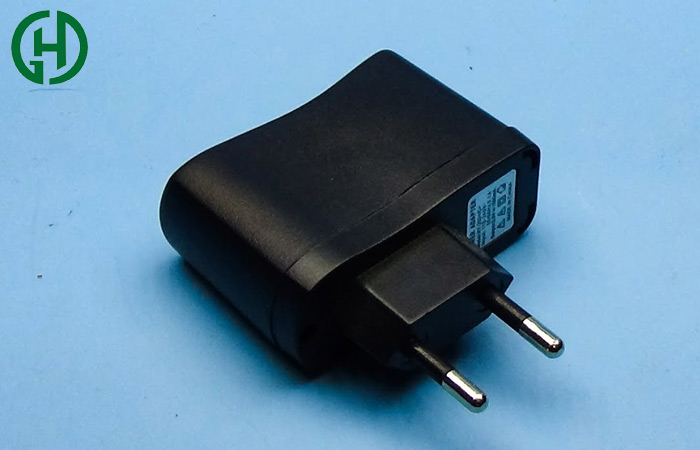

(1) Power adapter: It is a little compact electronic hardware and power transformation gear. It comprises of shell, transformer, inductor, capacitor, control chip, printed circuit board, and so forth.
(2) Charger: It is made out of stable power supply (mostly stable power supply, stable working voltage and adequate current) in addition to vital control circuits, for example, consistent current, voltage restricting and time restricting.
2. Different current methods of the power adapter and charger
(1) Power adapter: from AC contribution to DC yield, showing power, information and result voltage, current and different markers.
(2) Charger: It takes on consistent current and voltage restricting charging framework. The general charging current is about C2, or at least, a 2-hour charging rate is utilized. For instance, a 250mAh charge rate for a 500mah battery is around 4 hours.
3. The various attributes of power adapters and chargers
(1) Power adapter: The right power adapter requires wellbeing confirmation. The power adapter with wellbeing confirmation can safeguard individual security and forestall electric shock, fire and different perils.
(2) Charger: It is typical for the battery to have a slight temperature climb in the later phase of charging, however assuming that the battery is clearly hot, it implies that the charger can't identify that the battery is immersed in time, bringing about cheating, which is unsafe to the battery duration.
4. What does the power adapter comprise of?
(1) Power adapter meld: it is basically utilized for over-burden security. On the off chance that the breaker is appropriately positioned in the circuit, the wire will remove the current when the current strangely ascends to a specific level and intensity, in this way safeguarding the protected activity of the circuit.
(2) Inductance loop (otherwise called gag curl): it has the impacts of stifling stream, tuning and recurrence choice.
(3) Rectifier span: convert rotating current into direct current.
(4) Varistor: it is chiefly utilized for voltage clipping when the circuit is exposed to overvoltage, retaining overabundance current to safeguard delicate gadgets.
(5) PWMIC (coordinated circuit): with a specific innovation, the semiconductors, resistors, capacitors, inductors and different parts and wiring expected in a circuit are interconnected and manufactured on a little or a few little semiconductor wafers or dielectric base chip, and afterward embodied in a cylinder case to turn into a small construction with the necessary circuit works; all parts have been basically framed in general, making electronic parts move forward towards the bearing of scaling down, low power utilization, knowledge and high unwavering quality.
(6) Exchanging transformer: the DC input voltage is viewed as a progression of DC beat voltage, that is to say, unipolar heartbeat voltage, through the capability of controlling the switch on and off, which straightforwardly supplies power to the exchanging transformer.
(7) Electrolytic capacitors: electrolytic capacitors are named on the grounds that they use electrolytes as anodes (negative terminals). One finish of the electrolytic capacitor is positive and the opposite end is negative, which can't be switched. The positive terminal is associated with the positive terminal of the rectifier yield circuit, and the adverse terminal is associated with the adverse terminal of the circuit. In all circuits that need to change over substituting current into direct current, setting the channel capacitor will make the functioning presentation of the electronic circuit more steady, and furthermore decrease the impedance of the rotating swell on the electronic circuit.
(8) Power adapter high-power switch tube: it is one of the center parts in the exchanging power supply. The exchanging power supply can work "one on and one off", and the switch tube is irreplaceable.
